HID Lumidigm® M-Series
Fingerprint Readers

M-Series readers bring proven multispectral fingerprint imaging to demanding yet cost-sensitive logical access applications, with development tools that help speed your time to market.

SUPERIOR PERFORMANCE IN A COMPACT SIZE

APPLICATIONS

  • Physical Access Control
  • Time and Attendance
  • Self Service Kiosk
  • Single Sign-On
  • Mobile Authentication
  • Point of Sale
  • Know Your Customer
  • Deliver a Superior User Experience – Patented MSI technology ensures every user no matter the quality of their fingerprint (extra dry, wet, oily, dirty, aged and damaged) is properly enrolled and quickly matched
  • Reduce Financial Losses – HID market leading liveness detection accurately and consistently identifies and rejects fake finger attempts
  • Increase User Throughput – The capture of surface and subsurface fingerprint data significantly reduces false rejections for faster user throughpu

Patented HID multispectral imaging (MSI) technology in a compact footprint. Multispectral imaging captures surface and subsurface biometric details enabling you to deliver a superior user experience without sacrificing security. The cost effective M-Series is available in a USB desktop version and an OEM module for integration into a variety of devices.

CAPTURE

Ability to capture the most dicult finger types

HID patented multispectral imaging (MSI) technology delivers market leading Capture, Liveness and Match functionality. Ensuring a successful biometric implementation and superior user experience.

LIVENESS

Ability to detect and reject fake

fingers

MATCH

Ability to prevent rejection of a legitimate

user

Click here to learn more about
Capture, Liveness, and Match!
Successful biometric implementations require  3  critical components

SPECIFICATIONS

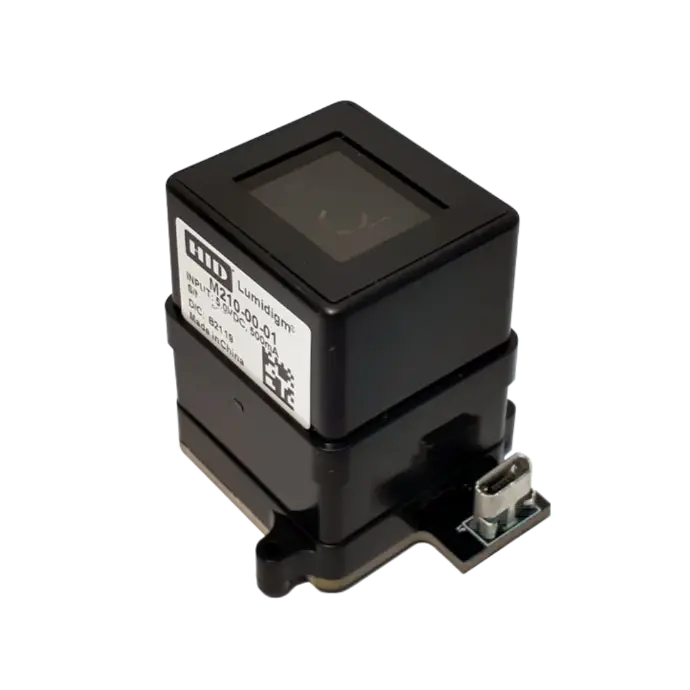

M210

M210

FINGERPRINT IMAGING SYSTEM
Technology

Output image resolution / bit depth


Platen area


Patented Lumidigm® Multispectral Imaging (MSI)

Add a description here


0.55 ”x .69” (13.9mm x 17.4mm) rectangle, uncoated chemical resistant glass (no coatings to wear out)

BIOMETRIC FUNCTIONS

Image output format


Template output format


Presentation Attack Detection (PAD)


Latent protection

Uncompressed or WSQ compressed images (FBI Certified)


ANSI 378 and ISO 19794-2 compliant (MINEX III certified)


ISO / IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified Patented Multispectral Imaging (MSI) Live Finger Detection (LFD)


User Configurable

BIOMETRIC PERFORMANCE

Finger Detection to Image Out

1 sec. Embedded ARM (typical)

0.35 sec. Windows Host (typical)

ENVIRONMENTAL RANGE

Temperature (operating, with enclosure)


Humidity (operating, with enclosure)


ESD Immunity

-10C to 60C


0 – 95% RH


IEC 61000-4-2 level 4 (+/- 15kV air discharge, 8kV contact discharge)

INTERFACE

USB



USB 2.0 high speed (480 Mbps), Micro USB connector


USB 2.0 high speed (480 Mbps), 1m USB cable


Operating systems supported

Windows 10 (64-bit), Android (Lollipop and newer)

FORM FACTOR & DURABILITY

Overall dimensions


1.44”W x 1.62”D x 1.54”H (36.8mm x 41.3mm x 39.3mm)


1.44”W x 1.62”D x 1.54”H (36.8mm x 41.3mm x 39.3mm)


Enclosure

ABS Plastic

POWER SUPPLY REQUIREMENTS

Supply current — operational


Supply current — idle

+5 VDC, 275 mA Operational (peak)


+5 VDC, 125 mA Idle (typical)

STANDARDS COMPLIANCE

Interoperability


Device certifications


Environmental

ANSI 378, ISO 19794-2, ISO/IEC 19784-1, MINEX III-certified algorithm, WHQL Drivers


CE, FCC, CB, UL


REACH, RoHS, WEEE


Ingress


Ingress at platen IP65


IP50, ingress at platen IP65


Other


Australia/New Zealand, Mexico, South Africa


For more information, please click here.

Product Name

Dimensions



Scan Capture Area


Image Mode




Pixel Resolution


Supply Voltage


Supply Current—scanning


Supply Current—idle mode


Supply Current—suspend

mode


Temperature, Operating


Humidity, Operating


Temperature, Storage


Humidity, Storage


Scan Data


Top Surface




Interface


Weight


Standards Compliance




ESD


DigitalPersona® 5300 Reader

86mm L x 53mm W x 31mm H (+/-0.5mm)


20.32 mm x 25.4 mm


Uncompressed Image Mode (raw) WSQ Compressed


500 dpi


5.0V ±5%







< 150 mA (Typical)







< 40 mA (Typical)







< 0.5 mA (Maximum)







-10 - 50 C







0% - 90% non-condensing







-20 - 55 C







0% - 90% non-condensing







8-bit grayscale (256 gray levels)







IP64-rated seal between top case and glass surface*







USB 2.0 High Speed







245 grams







FIPS 201 PIV, Mobile ID FAP 30, RoHS, UL, USB, WEEE, FCC, CE







IEC61000-4-2 Level 4







Data subject to change without notice.

*IP64 rating is for the seal between the top case and the glass imaging window.

Devices containing the embedded module must seal the module top case to their

chassis or housing to extend the IP64 protection to the device.
