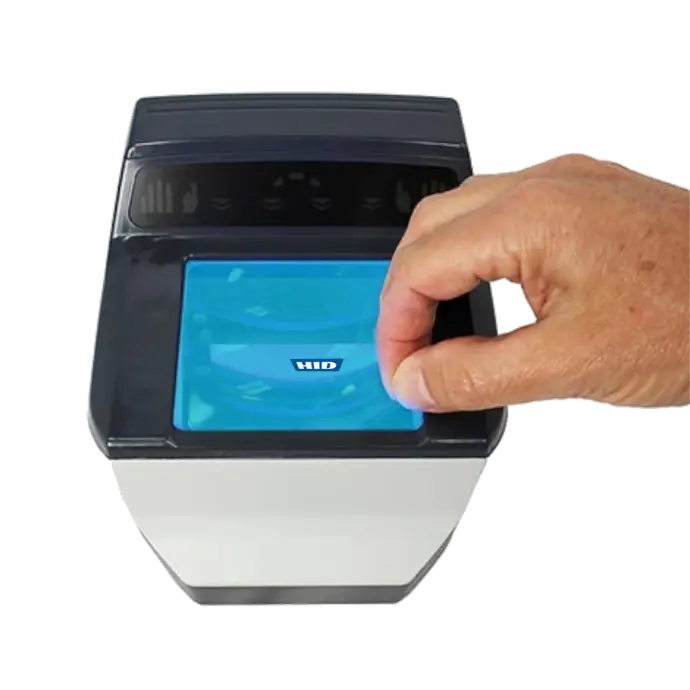

HID Guardian™ 200

The industry leader in tenprint livescan capture - providing performance, reliability and flexibility. Offered in a range of models to meet specific application requirements. .

COMPACT WET/DRY TENPRINT LIVESCAN WITH GRAPHIC USER INTERFACE

BENEFITS

  • Superior wet and dry print capture without recalibration
  • Intuitive instructions via illuminated pictograms
  • Intelligent capture features ensure quality images
  • Rapid auto capture improves efficiency

HID Global continues to set the global standard for reliable, high volume tenprint scanning. The Guardian 200 seamlessly integrates with HID's Integrale™ and MOBS software solutions, as well as customer screening and enrollment applications. Designed to address the challenges associated with high volume identity management applications, the Guardian 200 provides the simplest, fastest and highest quality certified fingerprint capture process.


Applicants are guided by easy to understand illuminated pictograms for attended and semi-attended processing. Because every applicant is unique, the Guardian captures images regardless of skin pigmentation and from both wet and dry fingers without the need to recalibrate the device or pretreat

the hands. Proprietary FlexFlat and FlexRoll features facilitate fingerprint image capture regardless of positioning on the platen. Our patented AutoCapture functionality ensures rapid capture of high quality images for error-free biometric data collection – eliminating the guesswork, errors and range of possible reprint issues. These features not only expedite the process and improve the overall applicant experience, but free the operator to focus on other critical screening and enrollment tasks.


Ideally suited for border control, national ID, and other expedited, high volume screening and enrollment applications, the Guardian 200 delivers enhanced security, proven reliability and a reduced total cost of ownership.


SPECIFICATIONS


ERGONOMIC DESIGN


Simple, fast and high quality fingerprint capture.

INTUITIVE USER GUIDANCE

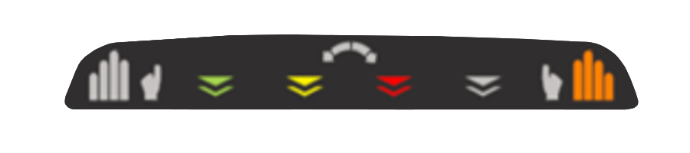

Intuitive instructions via illuminated pictograms
FINGERPRINT IMAGING SYSTEM
Product Name

On-device Display


Image Resolution


Image Greyscale


Dimensions


Capture Platen


Weight


Operating Temperatures


Power Supply


Ingress Protection Rating


Operating Systems


Certifications


Device Interface


Device Security

HID Guardian™ 200

Illuminated Pictograms


500 ppi


8 bit, 256


6" x 6" x 6.1" (15.24 cm x 15.24 cm x 15.49 cm)


3.2" x 3.3" (8.13 cm x 8.38 cm)


3.3lbs (1.5 kg)


32°F to 122°F (0° C to +50° C)


USB


IP 54


Windows® XP 32-bit; Windows® 7/8.1/10 32 and 64-bit


Appendix F, UL, CE, RoHS, GS


USB 2.0 high speed


Accepts security cable

BIOMETRIC FUNCTIONS

Fingerprint


Capture Features


Image Quality


Optional Components


Security Feature

Flats and Rolls


Auto-Capture, FlexFlats, FlexRolls, wet and dry finger image capture without pretreatment of hands or device recalibration


Appendix F, Livescan, and ID Flats (with or without membrane)


Silicone membrane, spoof detection, mounting bracket, cleaning kit


Optional Spoof Detection

BIOMETRIC PERFORMANCE

Software


SDK


HID Crossmatch L Scan™ Master (optional)


HID Crossmatch L Scan™ Essentials SDK 7.5 or later


Data subject to change without notice.



FINGERPRINT IMAGING SYSTEM
Product Name


On-device Display


Image Resolution


Image Greyscale


Dimensions




Capture Platen


Weight


Operating Temperatures


Power Supply


Ingress Protection Rating


Operating Systems




Certifications



Device Interface


Device Security

HID Guardian™ 200

Illuminated Pictograms


500 ppi


8 bit, 256


6" x 6" x 6.1" (15.24 cm x 15.24 cm x 15.49 cm)


3.2" x 3.3" (8.13 cm x 8.38 cm)


3.3lbs (1.5 kg)


32°F to 122°F (0° C to +50° C)


USB


IP 54



Windows® XP 32-bit; Windows® 7/8.1/10 32 and 64-bit


Appendix F, UL, CE, RoHS, GS


USB 2.0 high speed


Accepts security cable

BIOMETRIC FUNCTIONS

Fingerprint


Capture Features








Image Quality





Optional Components





Security Feature

Flats and Rolls


Auto-Capture, FlexFlats, FlexRolls, wet and dry finger image capture without pretreatment of hands or device recalibration


Appendix F, Livescan, and ID Flats (with or without membrane)


Silicone membrane, spoof detection, mounting bracket, cleaning kit


Optional Spoof Detection

BIOMETRIC PERFORMANCE
Data subject to change without notice.

Software



SDK




HID Crossmatch L Scan™ Master (optional)


HID Crossmatch L Scan™ Essentials SDK 7.5 or later
